WBV122D-BLACK - Wine & Beverage Combination
The combination range is a new range from CELLA, this is two coolers physically joined together by a joining kit and an extended grille at the bottom of the cooler so from the front, aesthetically, they look like one fridge.
Installation type: Freestanding/built-in
Models this combination is built from: 1 W93D-BLACK + 1 BV122S-BLACK
Dimensions: 1790 x 1190 x 570mm (h x w x d)
Capacity: 99 bottles (Bordeaux/Burgundy) + 315 x 330mL cans
Shelves: 7 telescopic wood + 7 glass fixed
Temp range: Upper: 5-20℃ / Lower: 5-20℃ (Wine) + 1-10°C (Beverage)
Pairs well with
WBV122D-BLACK - Wine & Beverage Combination
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
UK & ROI deliveries are made via a 2 person team*
EU and rest of world, 2 person is available at additional charge - costs calculated at checkout.
*postcode dependant.
Warranty
All our Cella products are covered by a 3 year warranty for peace of mind.
The UK & ROI is covered under both parts and labour, outisde of these areas and parts are covered only.
Customer Support
Please contact us with any queries you may have on info@winecella.co.uk
Quality, competitively priced
Our products are manufactured from European components offering comparable quality to those of other major manufacturers. By simplifying the value chain, we can offer competitive pricing without compromising on quality.
The perfect match
The combination range comes with a wider grille and a fixing kit which allows you to connect both fridges together. One door will be reversed so the coolers open from the middle (can be specified).
Telescopic rails

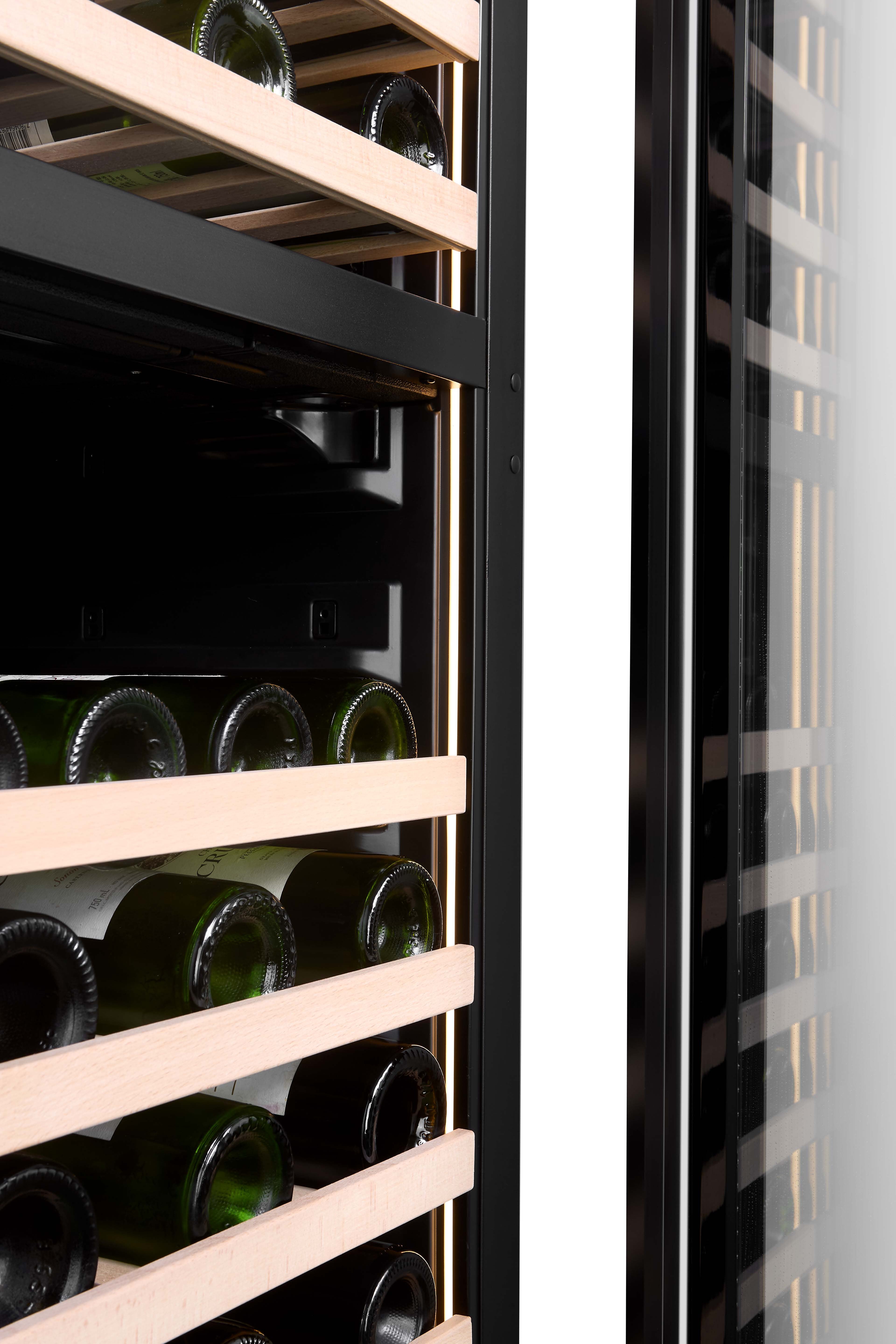

The wine side of the combination allows easy access to the bottles with extendable telescopic rails that pull 80% of the way out, the bottles sit neck to neck to achieve the maximum storage capacity and are suitable for both Bordeaux and Burgundy bottles.
Recessed streamline handle
The doors are designed to open within the designated space to allow for proper undercounter or a built in installation without using additional space, unlike other manufacturer's which feature large overhangs.
When the two units are joined together, the recessed handles mean that they can open from the middle as one door will be LH and the other RH hinged.
Fan assisted cooling & Charcoal filter
Our wine fridges are equipped with a powerful set of fans located in various places throughout the interior of the cabinet, this ensures a linear temperature throughout the interior.
Also featuring a charcoal filter which is easily replaceable every 12-18 months, eliminating any residual odour's onto the membrane of the filter.
Lock & Key
Our wine and beverage storage units come equipped with a manual lock -2 keys are supplied with every unit to keep your wines perfectly safe.
LCD Display & Childlock
CELLA wine and beverage fridges feature a new and updated LCD touch display which allows you to change the temperature, light setting amongst other settings - there is a 'childlock' also which is automatically activated to prevent the temperature from being changed.
Replaceable Charcoal Filter
The charcoal filter keeps the air pure inside the cooler, ensuring any contaminants are absorbed onto the surface of the filter.
Glass Shelving
The beverage unit comes equipped with multiple glass shelves, there are many slats to choose from within the beverage cooler.
Embraco Inverter Compressor
Our wine and beverage fridges utilize a digitally controlled inverter compressor, saving energy and ensuring as little noise output as possible.
Front Ventilation
Simple to install and allowing you to install our beverage units within cabinetry and to ensure the cooler does not overheat.
Warm White LED lighting
The CELLA range has excellent ceiling and side wall lighting with multiple spot lights - 3000k
Display Shelving
On request we can manufacture display shelves specifically for your wine fridge to show off your collection properly
Operating Temperature
Our wine fridges have a broad operating temperature range of 5-20°C, the beverage fridge operate between 1-10°C.
Reversible Door
As standard the beverage cooler will be delivered RH hinged (handle on the left), wine fridge on the left - although you can choose.
Humidity - 55-85% RH
The wine fridge recycles condensate captured during the cooling cycle to keep the humidity between 55-85% - perfect for storage of wine.
Temperature Safe
Built in HI & LOW temperature alarms, in the event of malfunction, your wine and beers will be safe with audible and visible alarms. Our wine & beverage cabinets also have an open door alarm to ensure the door is always closed properly.
Vibration Free
The compressor is mounted on rubber bushes to absorb any vibration and the shelves are manufactured from solid beech wood to absorb any internal vibrations.
UV Treated
Our wine & bevearge cabinets have 2 UV films applied to the door, reflecting any UV rays from external sources to prevent any penetration into the wine bottle.
3 Year Warranty
Our wine & beverage cabinets come equipped with a 3 year warranty for peace of mind.
Specification
Key information
Appliance designation
Fan assisted cooling
Ventilation required
Temperature range
Temperature control
Installation
Door
Door handle
Door open direction
Reversible door
Door open alarm
Lock
No of shelves
Shelf type
Light
On off lighting function
Display type
Display colour
Compressor type
Charcoal filter
Heating cooling
Technical data
Collapsible content 2
Gtin
Winter system
Eei class
Noise class
Noise level db a
Rated annual energy consumption
Refrigerant
Capacity l
Bottle capacity
Internal humidity
Vibration free
Power lead length
Adjustable feet
Warranty
Dimensions/weight
Product dimensions h x w x l
Packaged dimensions h x w x l
Unpacked weight
Packaged weight
Product files
Product specification
W93D-BLACK SPECIFICATIONProduct specification ii
BV122S-BLACK SPECIFICATIONInstall diagram
W93D-BLACK - InstallationBottle loading diagram
CELLA - W93D-BLACK BOTTLE LOADINGBottle loading ii
BV122S-BLACK BOTTLE LOADINGEnergy label
W93D-BLACK ENERGY LABEL
Energy label ii
BV122S-BLACK ENERGY LABEL
User manual
CELLA USER MANUALFAQs
I am a trade customer, can I open a direct account with you?
Absolutely, we have an extensive network of partners reselling, stocking and distributing our products across Europe - read more here.
How long does it take to deliver?
For UK deliveries we can deliver in as little as 3-5 working days.
ROI deliveries are usually delivered in 5-10 working days, including customs clearance and include all taxes.
EU an further abroad can take 7-14 working days - we recommend contacting us prior to discuss delivery.
How much does delivery cost?
Delivery to the UK mainland is free of charge, the EU (including ROI) there is an additional charge and is calculated at checkout - for accurate costs, please contact us prior - all taxes are included on exports out of the UK.
How long is the warranty?
CELLA products come with a 3 year warranty as standard. For the UK and Ireland, parts and labour are covered - for the rest of the world we offer parts only, however, the labour may be supported by your local distributor (if applicable)
Do you recycle old wine and beverage fridges?
Unfortunately, this is not a service we offer as standard, we recommend contacting us prior to delivery to arrange this as it is postcode/country restricted.
